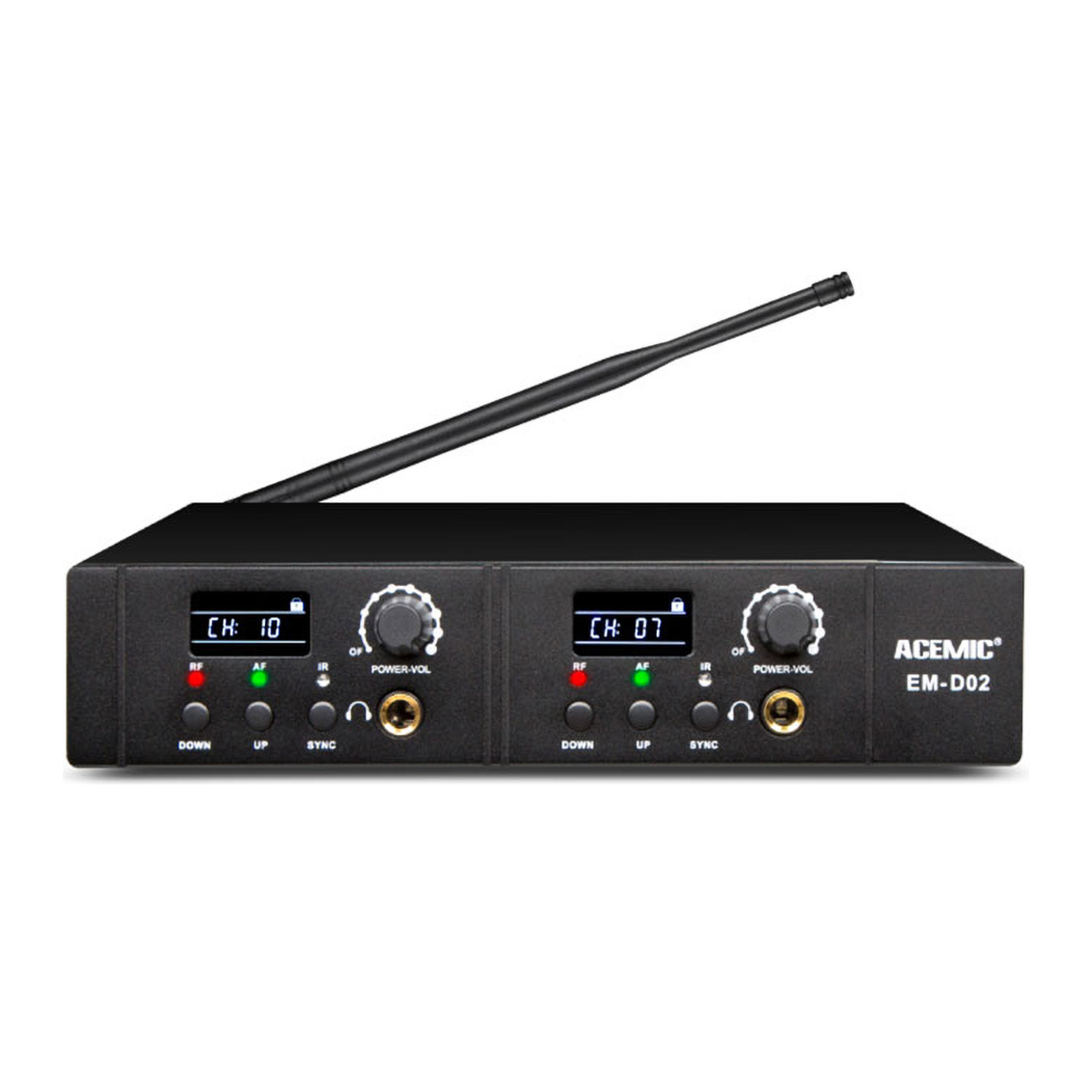

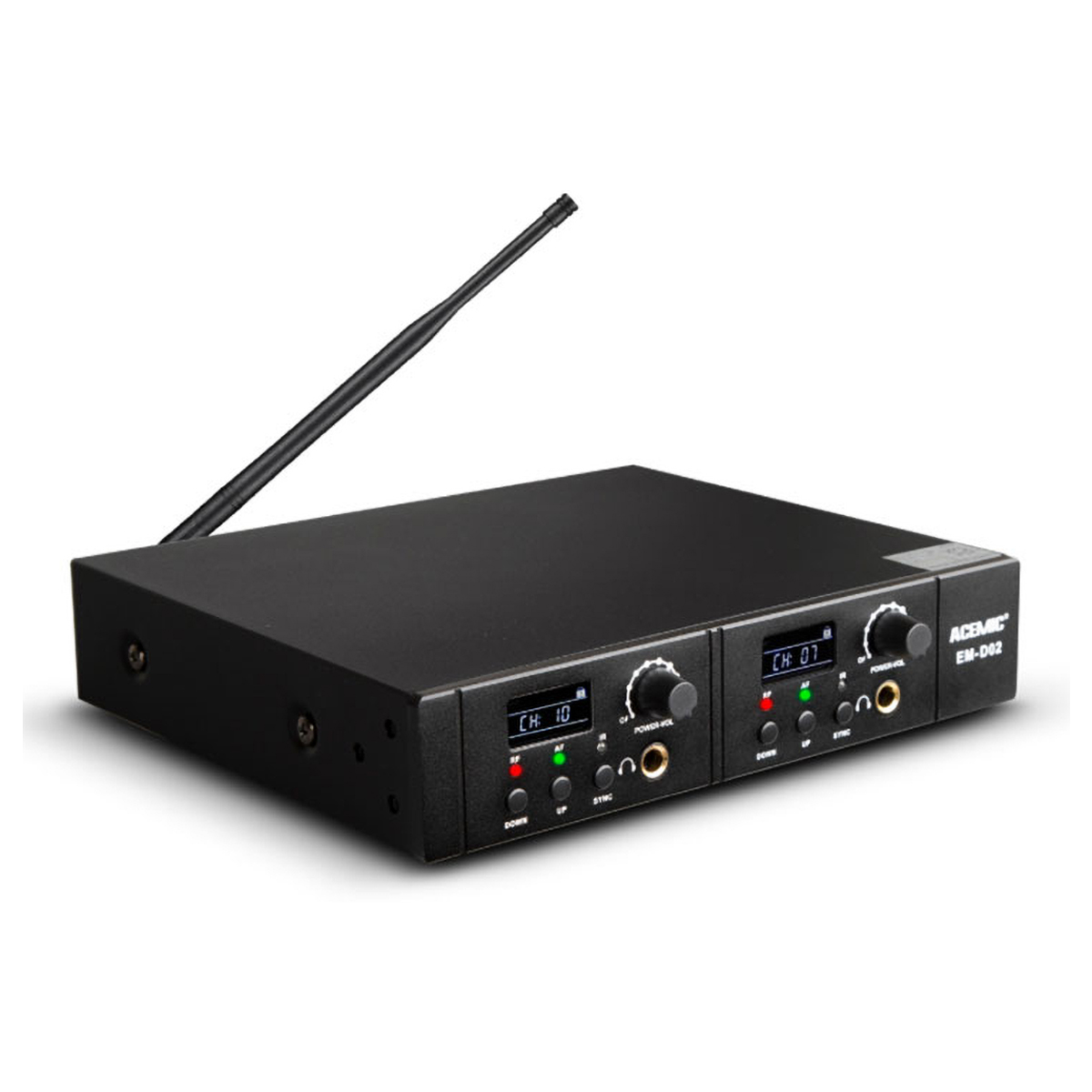

In-Ear Monitor System for Whole Band EM-D02
Wireless In-Ear Monitor System for Whole Band
Features
UHF 600-928MHz frequency range
Mono Audio Output

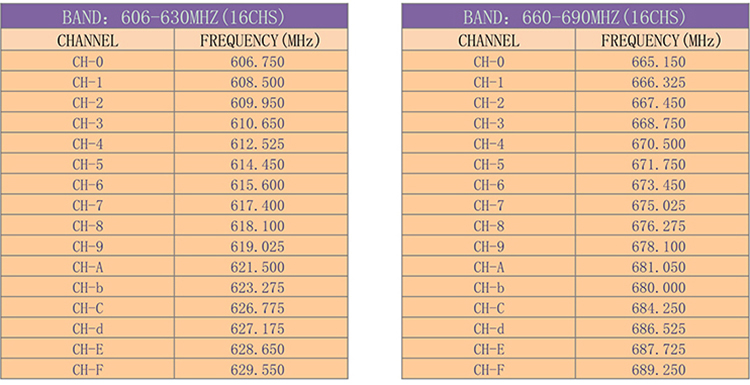

Pre-set 16 selectable frequencies
IR sync downloading the frequency from receiver
LCD display and LED digital tube shows the working channel
EIA standard 1U rack-mountable metal chassis
Up to 263 feet (80m) line-of-sight operating range
Designed for stage performance, singers, guitarists, drummers, studios etc.
UHF 600-928MHz frequency range
Mono Audio Output
Pre-set 16 selectable frequencies
IR sync downloading the frequency from receiver
LCD display and LED digital tube shows the working channel
EIA standard 1U rack-mountable metal chassis
Up to 263 feet (80m) line-of-sight operating range
Designed for stage performance, singers, guitarists, drummers, studios etc.
Quantity
-
DetailModel: EM-D02
Mono Audio Output

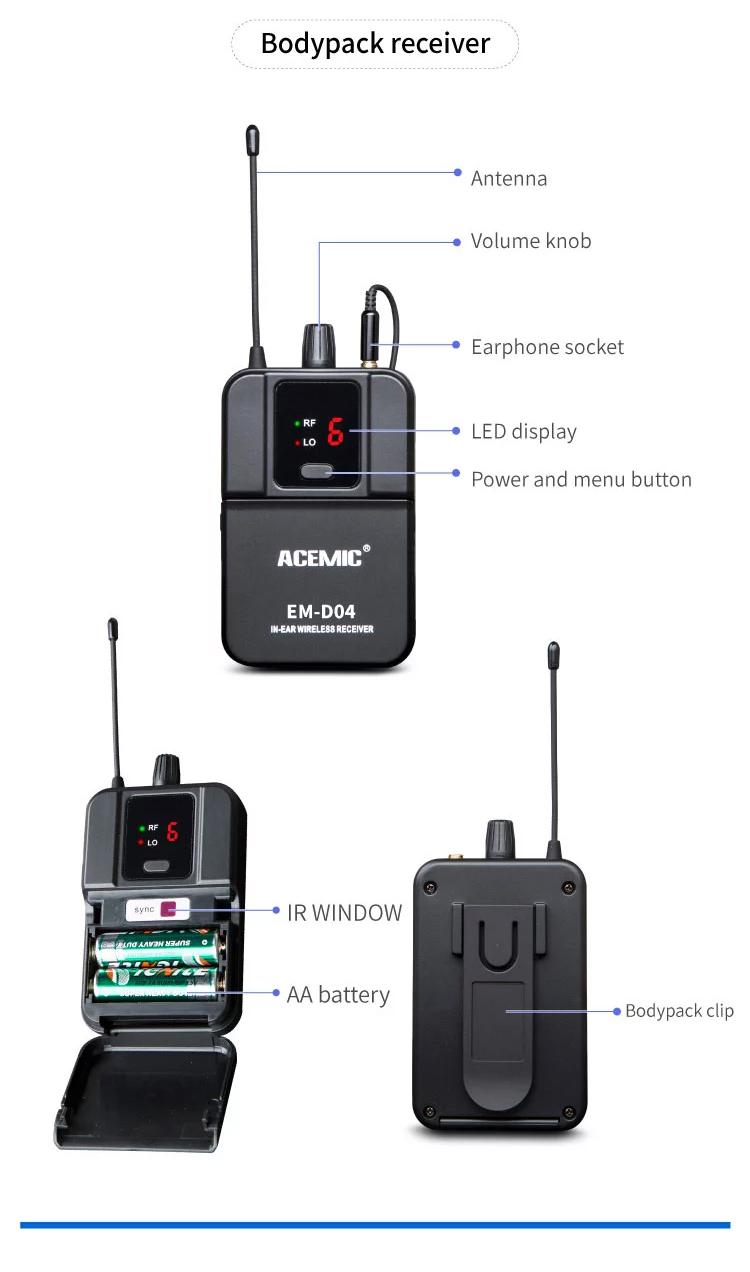

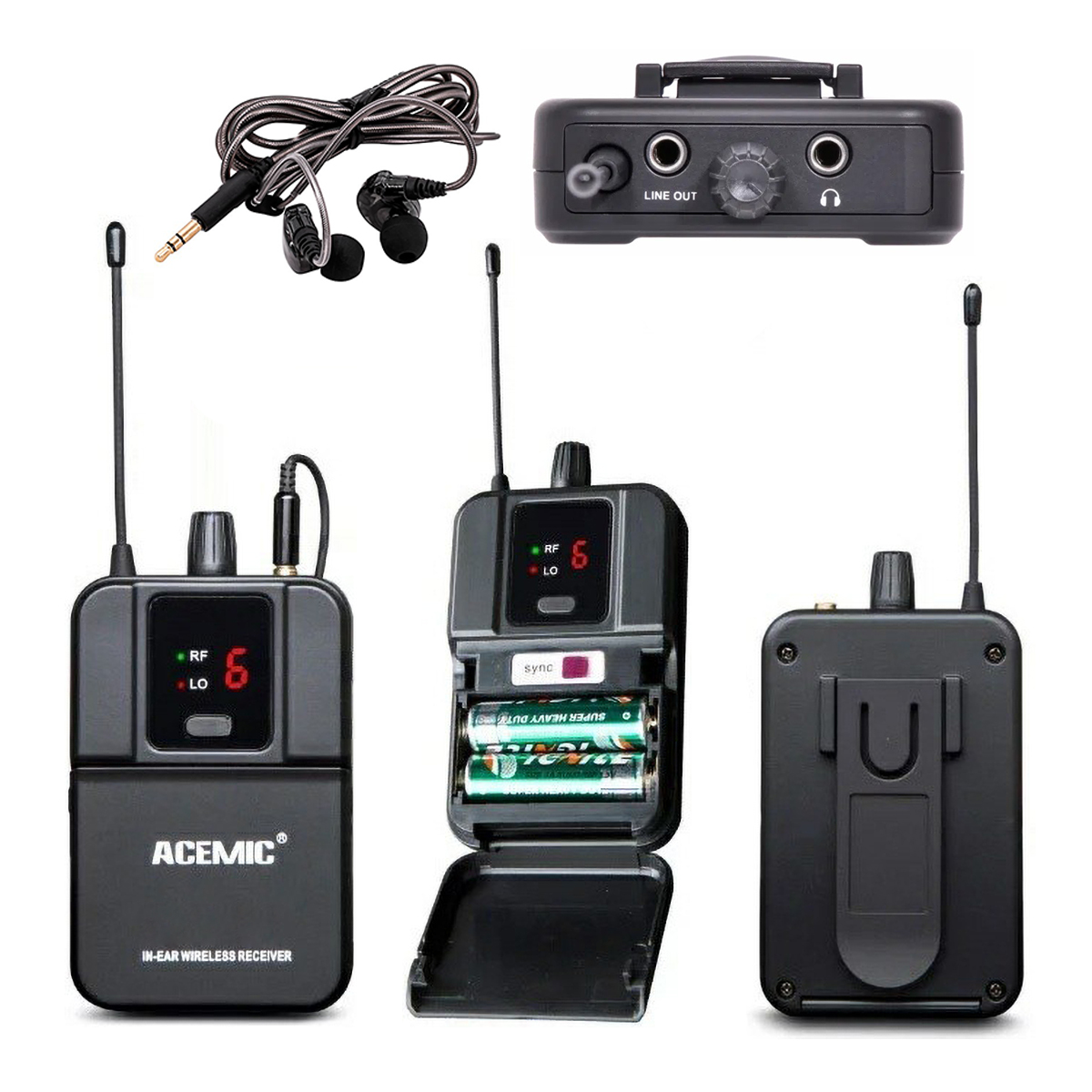

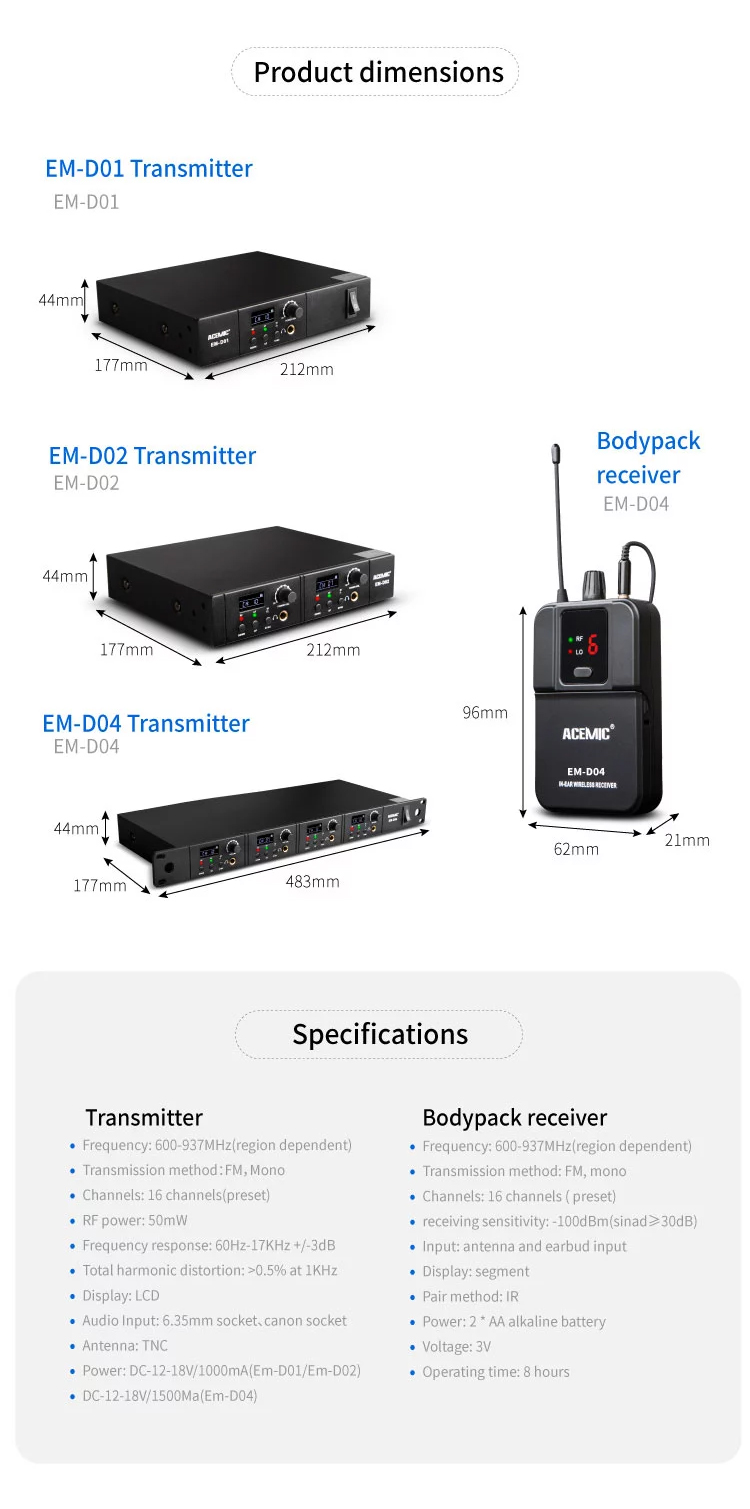

Operating Range: 80m, 263ftSpecificationsTransmitter (Main Unit):Frequency Range: UHF 660-690MHz (USA: 902-928MHz)Transmission Method: FM,MonoChannels: 16RF Output Power: 10mW/50mWFrequency Response: 60Hz-17KHz+/-3dBT.H.D: <0.5%at 1KHzDisplay: Back lit LCDAudio Input: 6.35mm/XLRAntenna: TNCPower Supply: DC12V-18V/1500mADimensions(L*W*H): 212*177*44mmReceiver (Bodypack):Frequency Range: UHF 660-690MHz (USA: 902-928MHz)Transmission Method: FM,MonoChannels: 16Receive Sensitivity: -100dBm(sinad>30dB)Output: Line out and earphone outDisplay: LED digital tubeFrequency pairing: IR SyncPower Supply: 2*AA batteriesOperating Voltage: 3VOperating time: 8 hoursDimensions(L*W*H): 96*62*210mm
About this item:【UHF in Ear Monitor】The in-ear monitor system for whole band utilizes UHF band circuitry. Delay-free operation compared to the 2.4GHz design. Advanced circuit design, clear the receiving blind angle to make the system's receiving signal steady, avoid interference.【2x16 Tunable Frequencies】 Among the band of 30 MHz, the preset 16 frequencies can be arbitrary switching. Enable interference-free multiset operation with two wireless in-ear monitor system for whole band.【Reliable Monitoring】 Built-in Limiter circuitry eliminating distortion at excessive input levels. Also improve the signal-to-noise ratio of the dynamic range so that the system has the best anti-interference to show the perfect original sound again. Mono in ear monitor produces crystal-clear sound monitoring and enables you to monitor overall sound from various instruments and singers effectively, a beginner-friendly in-ear monitor system for whole band.【Long Wireless Range】The wireless in-ear monitor system for whole band offers tabletop stage monitoring with a wireless range of up to 263 feet (80m), with frequency range UHF 600-928MHz. Cable-free set you free.【Design Features】 Clear LCD display panel to provide the in-ear monitor system for band details. With Channel indicator & RF receiving indicator lamp on receivers. It uses two AA batteries and an efficient power circuit, long service time. The metal housing makes it sturdy and durable.【Rugged and Durable】The sturdy whole metal-built transmitter and light-weight ABS bodypack receivers are long-lasting and elegant. The wireless in-ear monitor system for whole band is suitable for stage performances, studio recordings, lectures, etc. The rackmount kit facilitates more professional use and better signal transmission.
-
Customer Reviews
Os****U.
Good product. Out of the box, everything's working fine. Easy to set up, very user friendly. The transmitter in good quality, but the body pack receiver is a bit cheap plastic . Overall no complaints for the price, just take times to know does it reliable.
Marce**********eira
Excelente sonido, sin interferencia. He probado el equipo, suena de maravilla, algo muy importante es que no se pierden los bajos como en otros equipos, funcionan desde 60Hz a 17000Hz, hasta ahora no he tenido problemas de interferencia ya que tiene muchos canales, casi no lo cambio de canal, aunque en el manual aconseja en cada uso cambiar de canal, lo único es el body es material es de plástico aunque no es de mala calidad, y hubiese sido bueno poder sacar la antena para poder transportarlo espero que no se dañe muy pronto por el uso. en general funciona a la perfección estoy contento con el equipo.
C***s
Works well in small or medium sized venues. We use this system weekly for gigs at small to medium-sized venues. They have been reliable and offer a decent way to get into in-ear monitoring for little money. Build quality is solid and the receivers are compact and solid feeling even though they are plastic. Batteries seem to last a good while and the range has been fine with the transmitter placed on stage. There's plenty of volume with the receiver packs when paired with good earbuds. Don't bother using the ones that come with the unit. Invest in custom ear monitors or get some sub $100 universal earbuds and you'll be happy. We are a professional band that works 5-7 gigs a month. If you are a touring band with a decent budget you should spring for the Sennheiser or Shure pro IEM setups for no-nonsense reliability and peace of mind.
Car*******olla
Es un producto excelente, y hermoso. Toda su funcionalidad es superior para su precio, el único detalle son los auriculares que son de baja calidad, pero de lo demás son dos excelentes transmisores por el precio de uno, super recomendable.
Ju****.
Met my expectations. For the price of the product it is very good, totally recommended for its cost
j***7
Muy bueno. Estoy por probarlo a profundidad y ver el rendimiento por la llegada del producto fue muy rápido
J**.
Good Price Simple but Efficient. We Paid near to nothing for this and it is effective and helps our musicians at the church hear themselves we’ll probably upgrade in a year or two but these could carry us for years.
