Personal Monitor System EM-D01

(6)
Wireless Personal Monitor System
Features
UHF 600-928MHz frequency range
Mono Audio Output

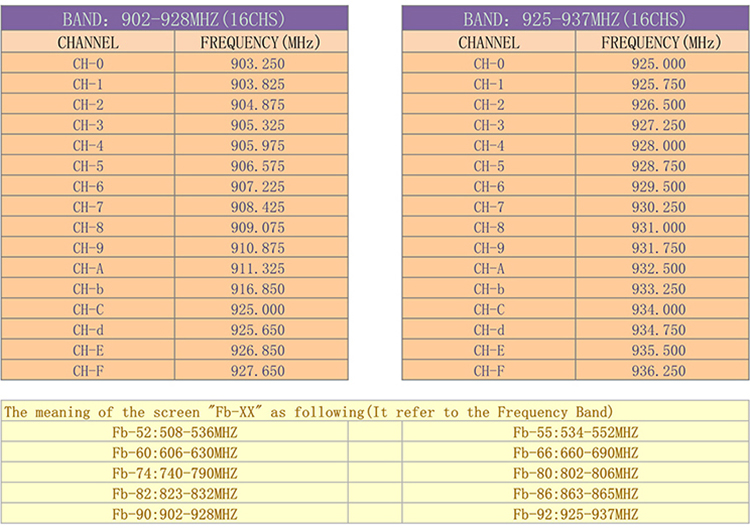

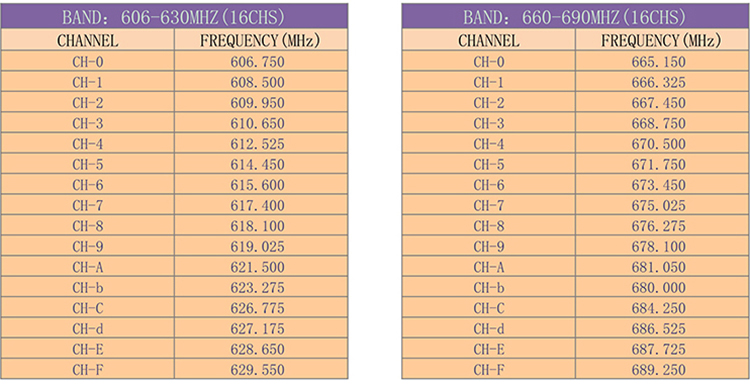

Pre-set 16 selectable frequencies
IR sync downloading the frequency from receiver
LCD display and LED digital tube shows the working channel
EIA standard 1U rack-mountable metal chassis

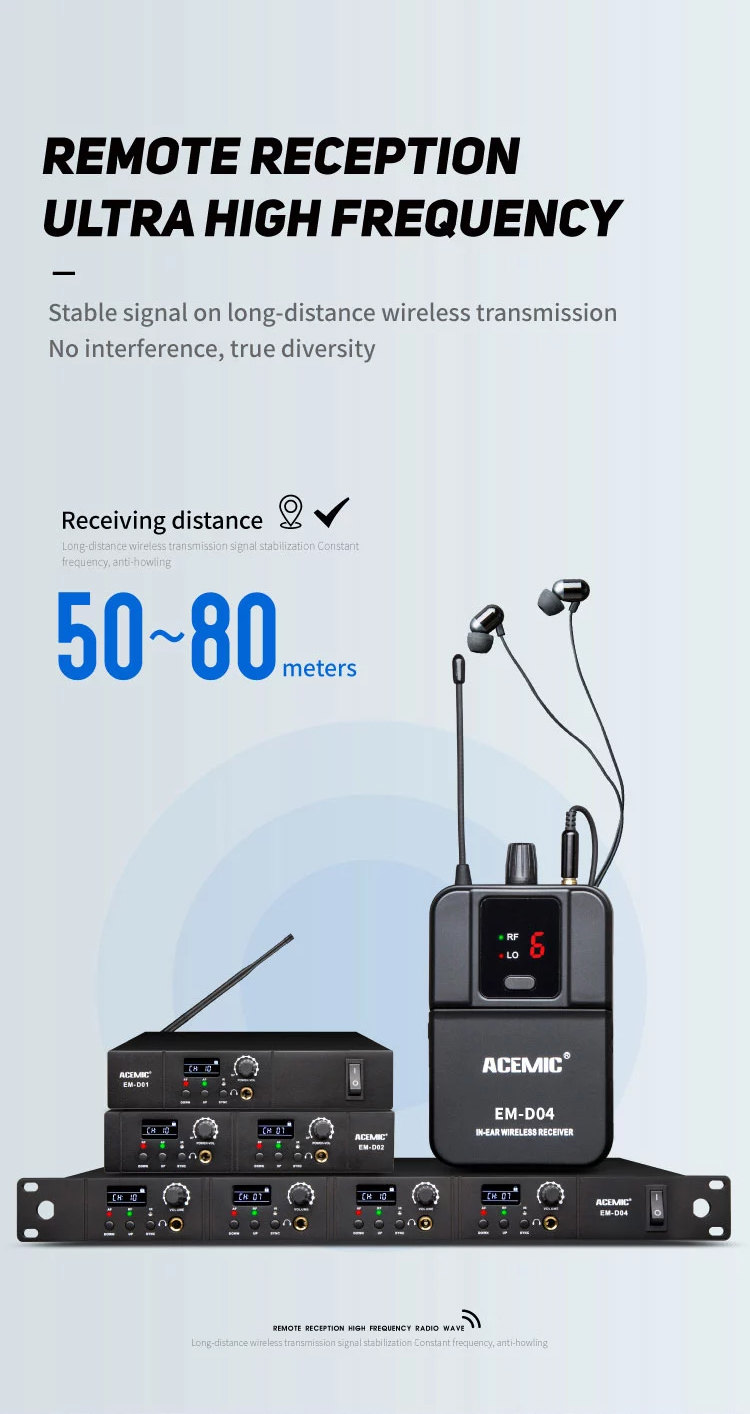

Up to 80 meters (263 feet) line-of-sight operating range
Designed for stage performance, church, band, singers, drummers, guitarists, studio etc.
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Model: EM-D01
    Mono Audio Output
    Operating Range: 80m, 263ft

    Specifications

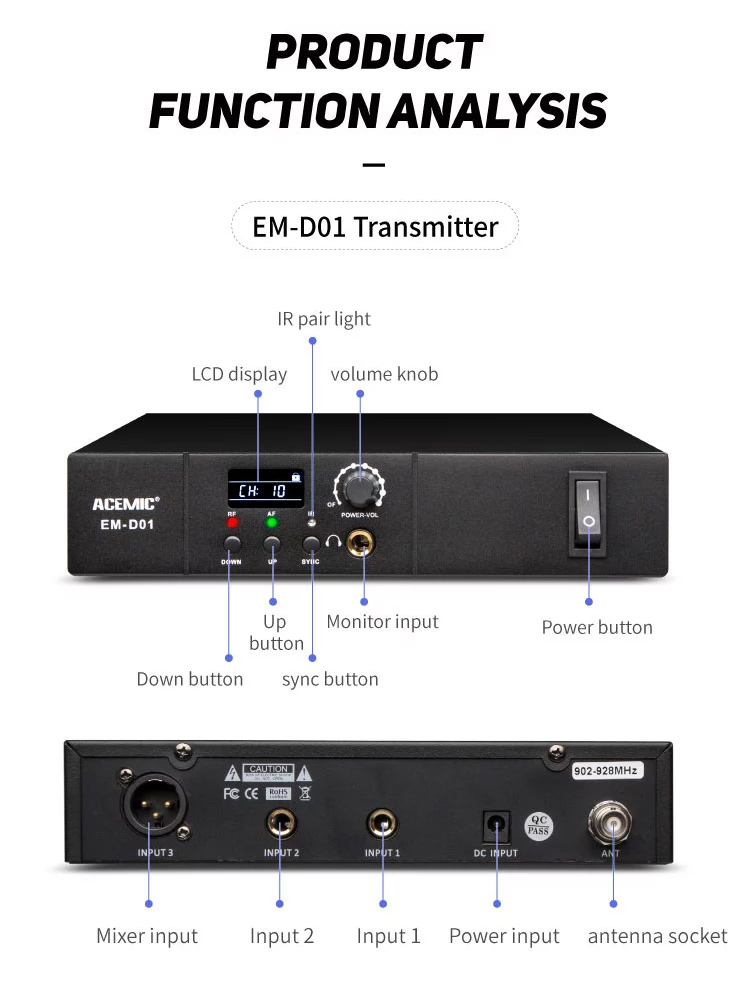

    Transmitter (Main Unit):
    Frequency Range: UHF 660-690MHz (USA: 902-928MHz)
    Transmission Method: FM,Mono
    Channels: 16
    RF Output Power: 10mW/50mW
    Frequency Response: 60Hz-17KHz+/-3dB
    T.H.D: <0.5%at 1KHz
    Display: Back lit LCD
    Audio Input: 6.35mm/XLR
    Antenna: TNC
    Power Supply: DC12V-18V/1500mA

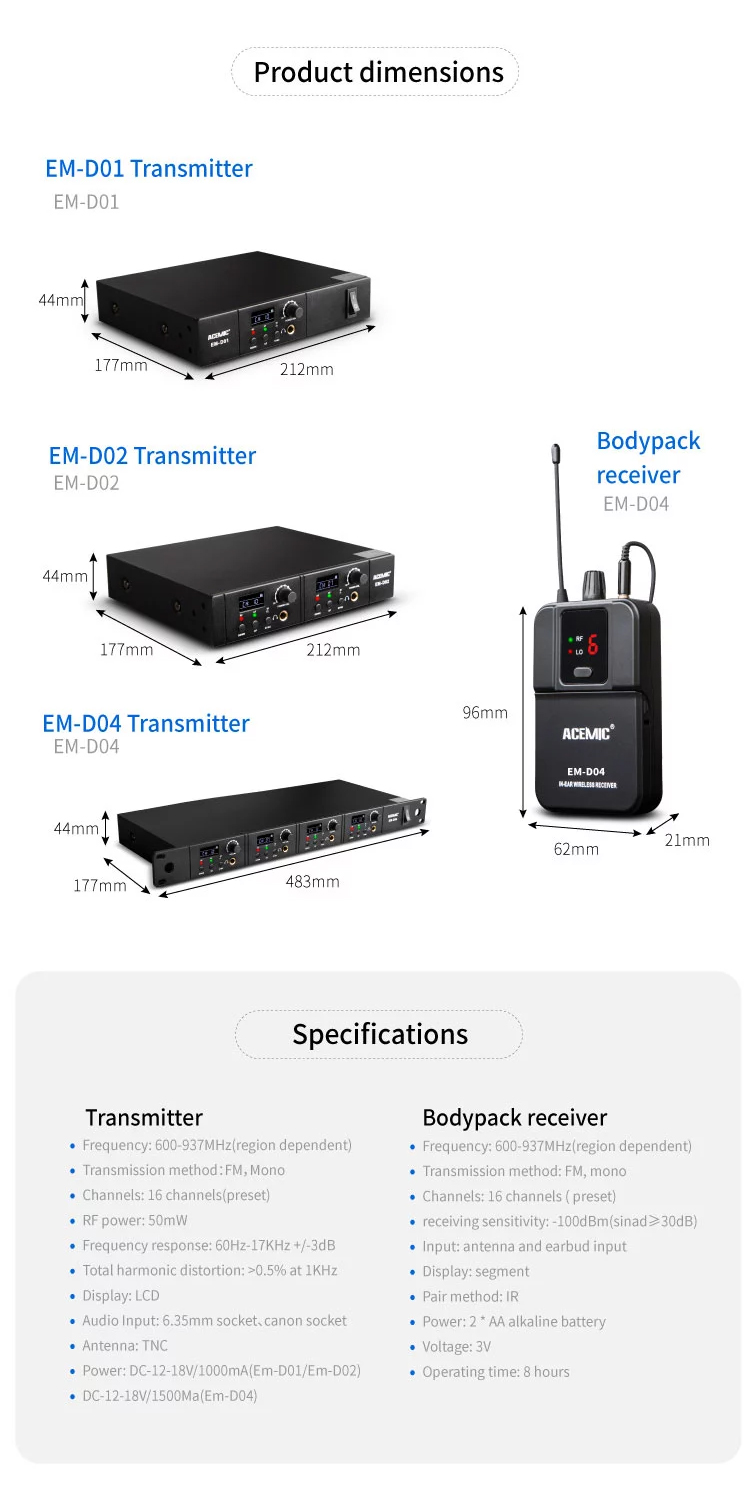

    Dimensions(L*W*H): 212*177*44mm

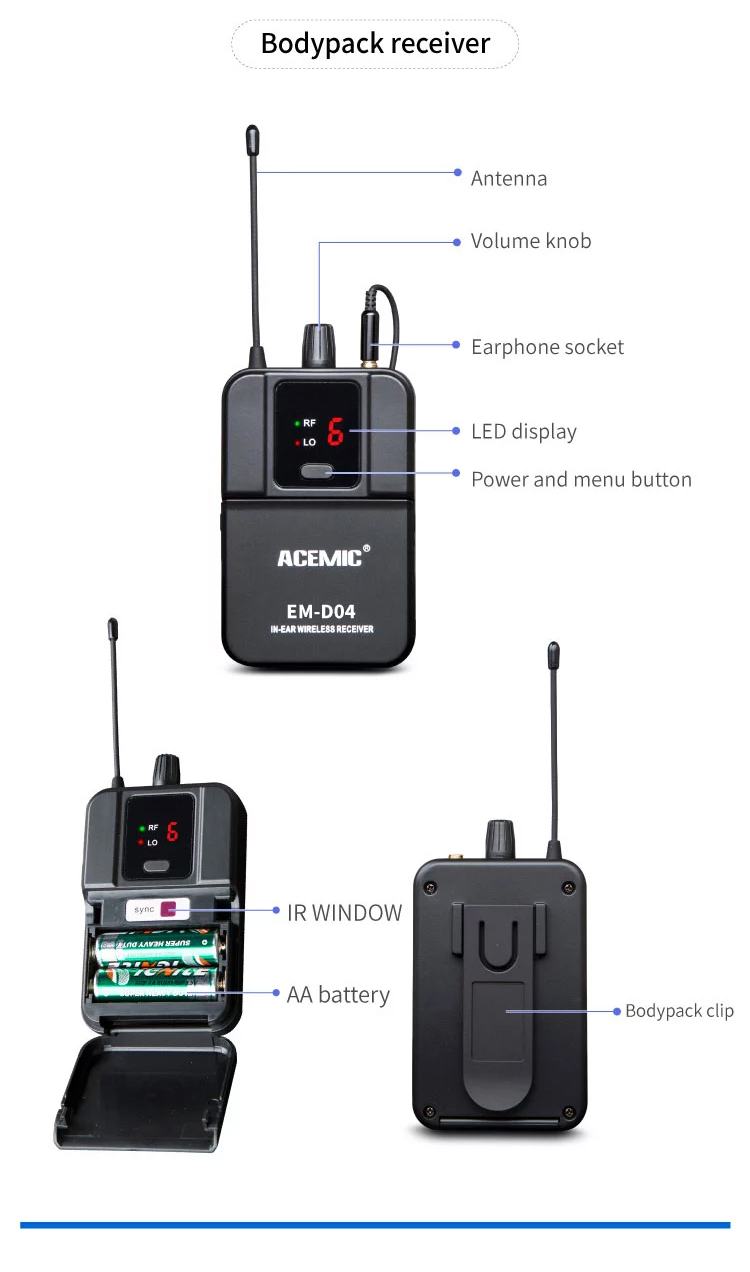

    Receiver (Bodypack):
    Frequency Range: UHF 660-690MHz (USA: 902-928MHz)
    Transmission Method: FM, Mono
    Channels: 16
    Receive Sensitivity: -100dBm(sinad>30dB)
    Output: Line out and earphone out
    Display: LED digital tube
    Frequency pairing: IR Sync
    Power Supply: 2*AA batteries
    Operating Voltage: 3V
    Operating time: 8 hours
    Dimensions(L*W*H): 96*62*210mm

    About this item:
    【Wireless Performance】The personal monitor system operates in UHF band with 16 selectable frequencies ( 4+ units can work together). NO Latency by utilizing UHF wide audio signal transmission. Wireless design for less clutter on stage, enables users to move freely with 263ft (80m) operating distance in open space, line of sight. *For longer distance, please avoid thick walls, glass, and metal block
    【Mono Design, Separate Outputs】Elegant sleek design with metal construction for transmitter base unit. Black carrying case for safe-keeping. Left and right inputs for personal audio mix with clear mono sound monitoring. The wireless personal monitor system also runs a left/right line out back to the soundboard or speaker. It allows original audio signal pass through the EM-D01 transmitter without being affected
    【Simple Setup】Simple setup with uninterrupted frequency to optimize sound performance for the personal monitor system. Earbuds provide pure sound and enhanced performance.
    【Versatile Use】The wireless personal monitor system works in various sound-monitoring events, stage performance, studio recording, exhibit, lecture, instruction, speech, etc. The package also includes necessary tools to work with standard rack unit.
    【Box Contents】 1 x Wireless IEM Transmitter, 1 x UHF Bodypack Receiver,1 x Power Adapter, 1 x Antenna, 2 x AA Battery, 1 x Antenna Kit, 1 x User Manual

    Purchase with Confidence: Acemic EM-D01 personal monitor system is crafted with premium components and precision engineering, ensuring trusted quality and lasting reliability. We stand firmly behind every product we make.
