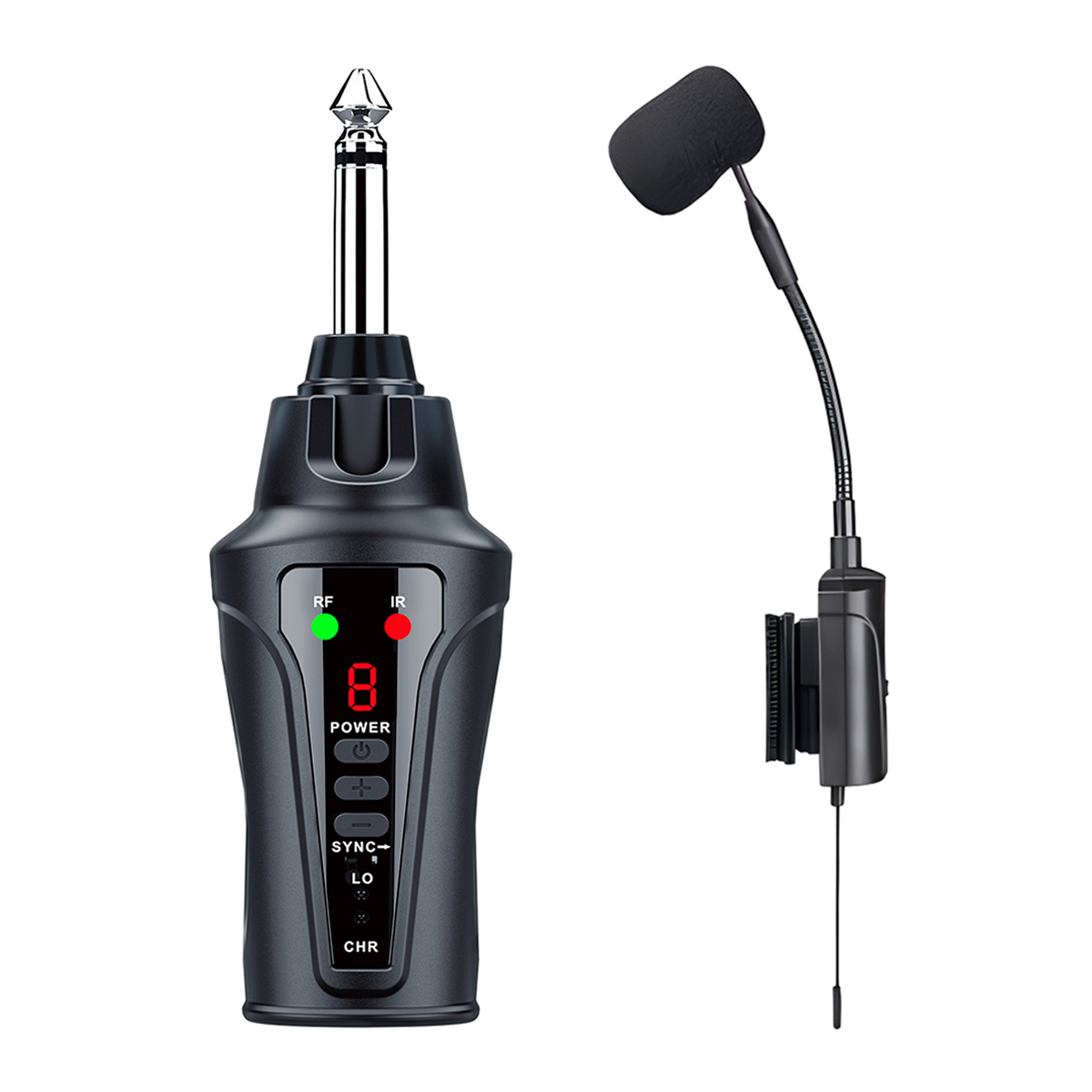

Acoustic Guitar Microphone AT-5

(3)
Wireless Acoustic Guitar Microphone
Features
UHF 600-928MHz frequency range
Digital wireless audio transmission
48KHz audio sampling mode
Pre-set 16 selectable frequencies
Digital ID code, completely solves frequency interference
IR sync downloading the frequency from receiver
Lithium battery power supply
Portable plug-on receiver, plug in the mixer or active speaker directly
Up to 164 feet (50m) line-of-sight operating range
Suitable for acoustic guitarist playing, stage performance
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Model: AT-5
    Operating Range: 50m, 164ft

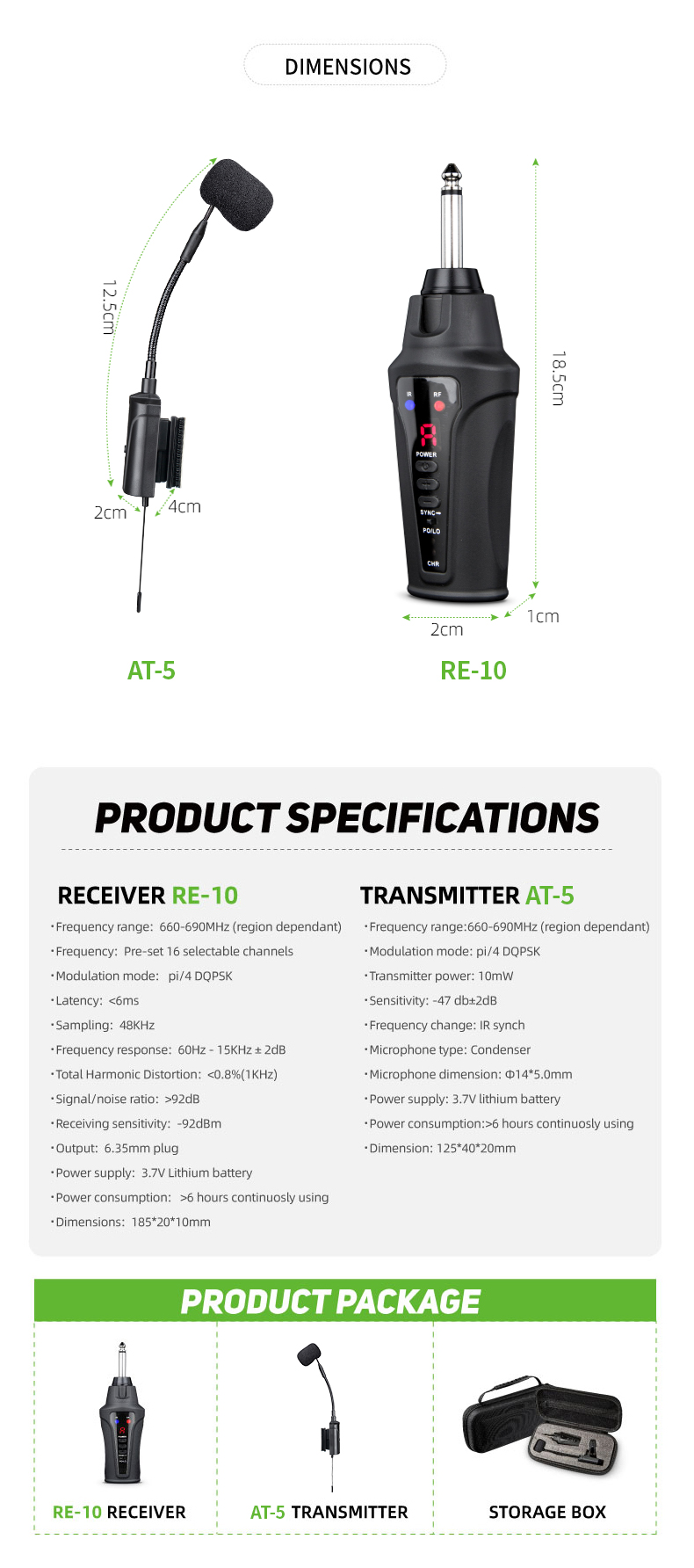

    Specifications

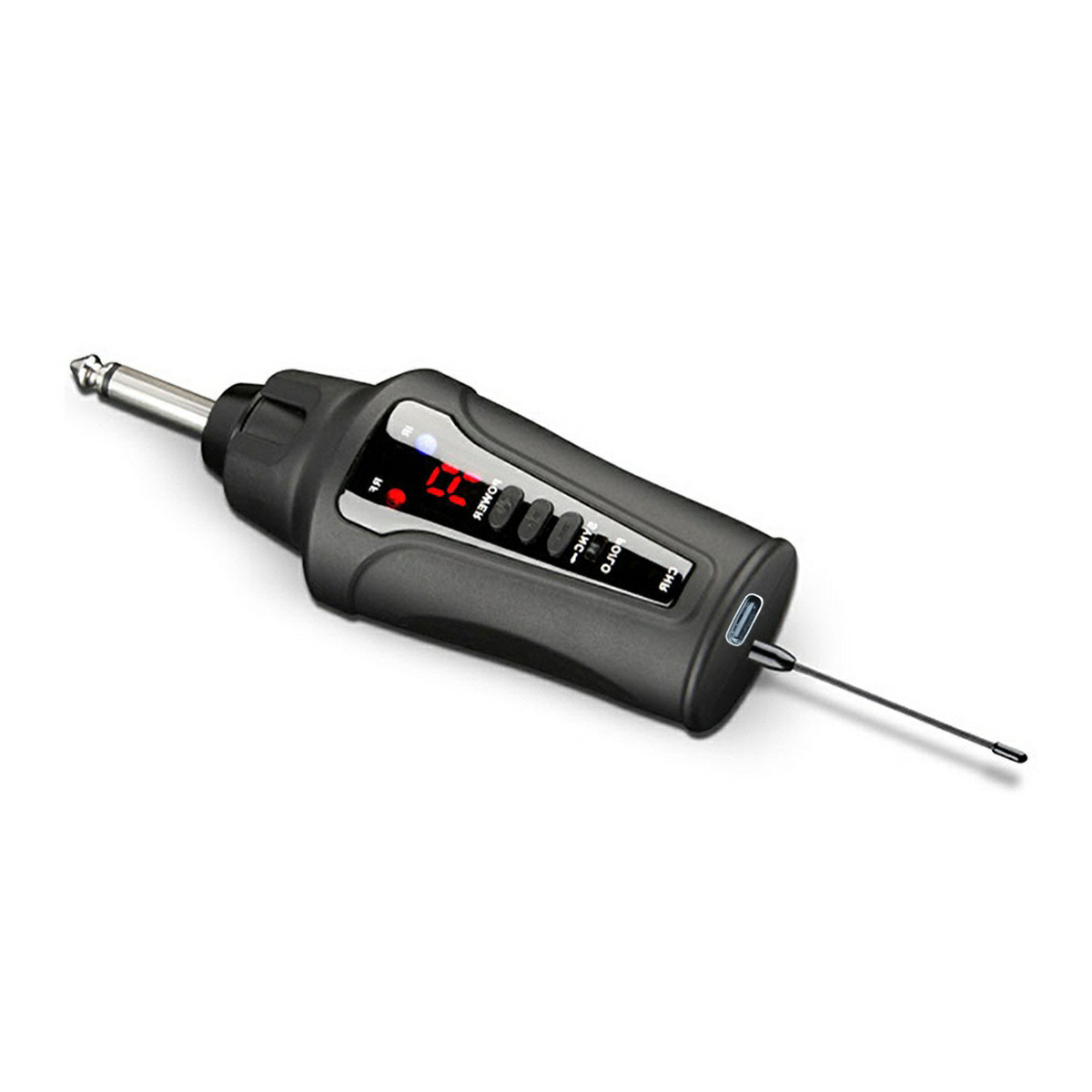

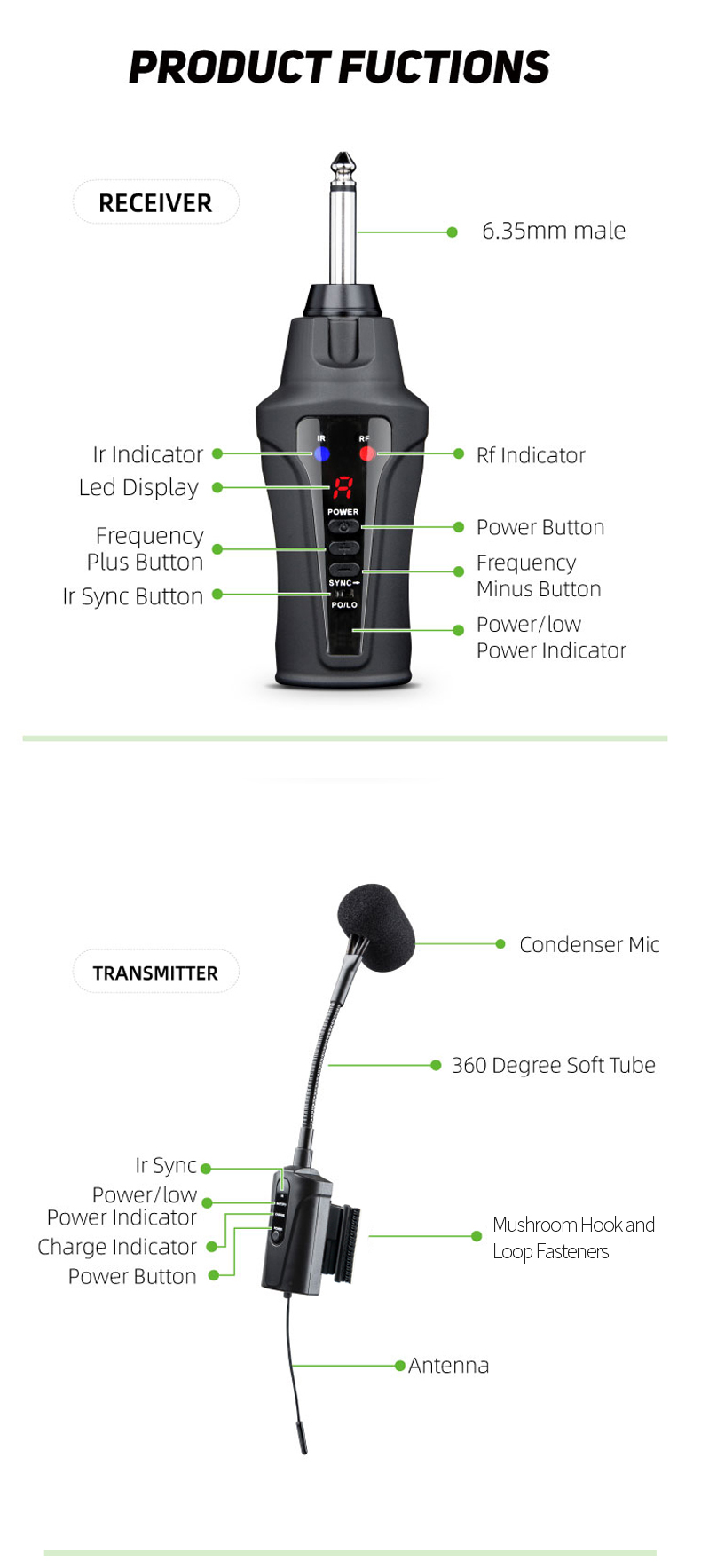

    Receiver
    Frequency range: UHF 660-690MHz (USA: 902-928MHz)
    Frequency: Pre-set 16 selectable channels
    Modulation mode:  pi/4 DQPSK
    Latency: <6ms
    Sampling: 48KHz
    Frequency response: 60Hz - 15KHz ± 2dB
    Total Harmonic Distortion: <0.8%(1KHz)
    Signal/noise ratio: >92dB
    Receiving sensitivity: -92dBm
    Output: 6.35mm plug
    Power supply: 3.7V Lithium battery
    Power consumption:  >6 hours continuously using
    Dimensions: 185*20*10mm

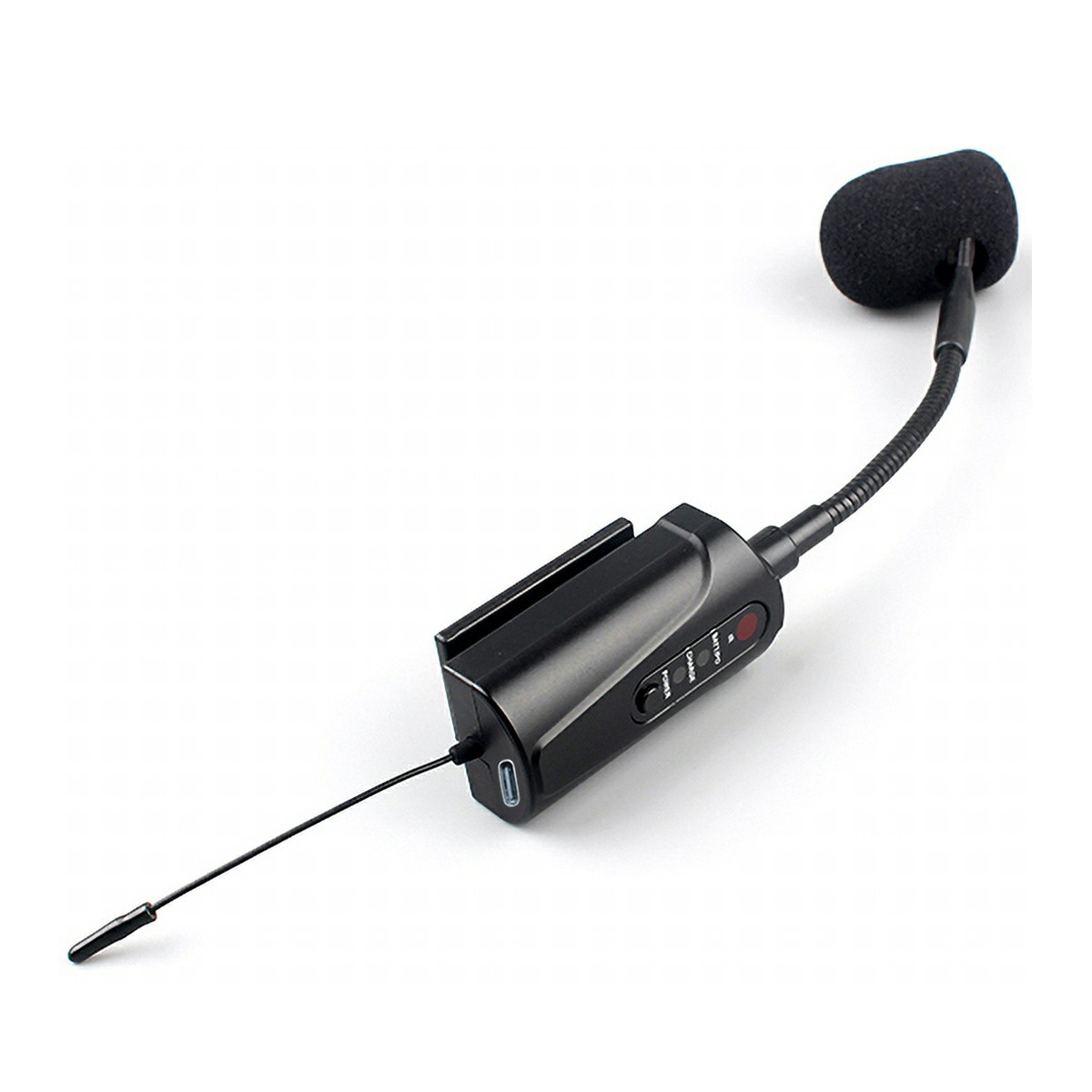

    Transmitter
    Frequency range: UHF 660-690MHz (USA: 902-928MHz)
    Modulation mode: pi/4 DQPSK
    Transmitter power: 10mW
    Sensitivity: -47 db±2dB
    Frequency change: IR synch

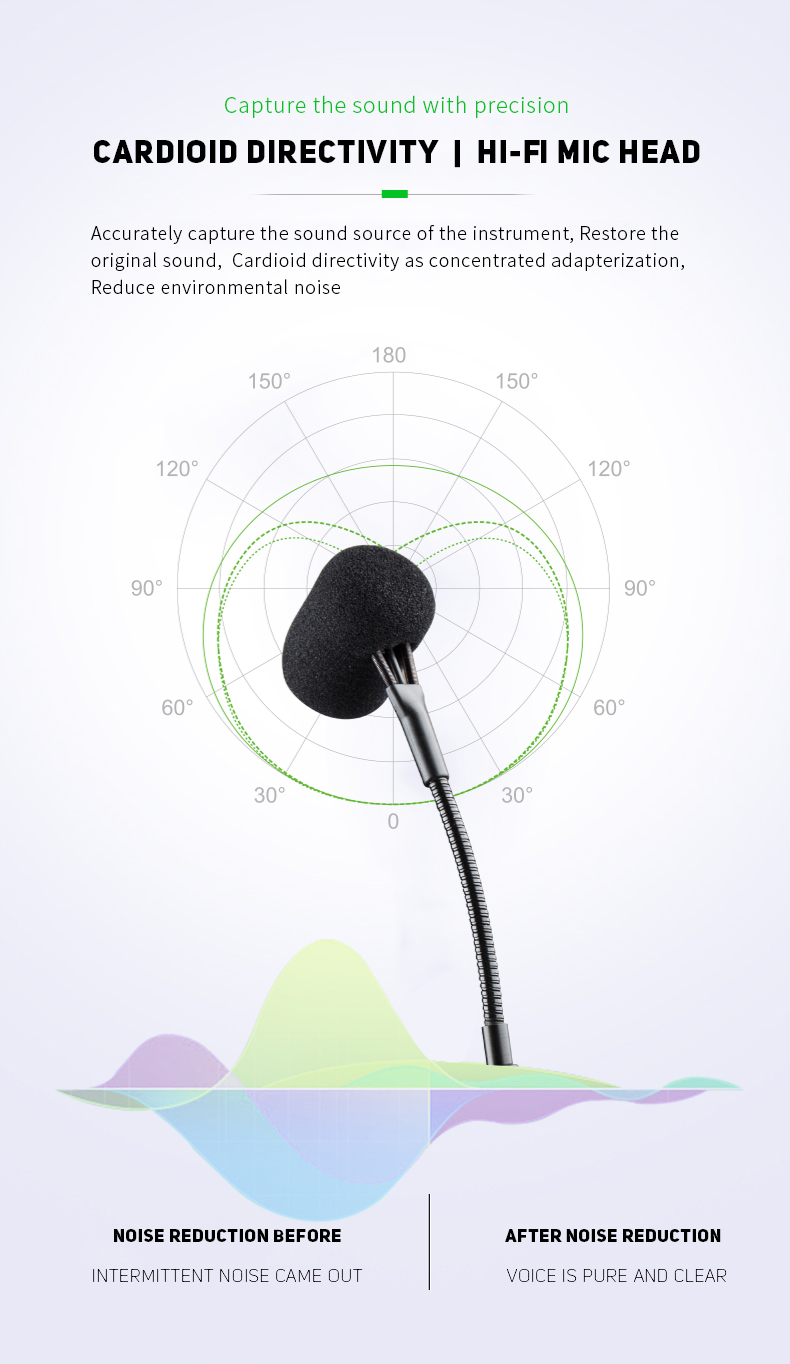

    Microphone type: Condenser
    Microphone dimension: Φ14*5.0mm
    Power supply: 3.7V lithium battery
    Power consumption:>6 hours continuously using
    Dimension: 125*40*20mm

    About this item:
    • Non - Mark Adhesive: The acoustic guitar microphone is teared off without damage to the instrument paint.
    • High Quality Sound: The wireless acoustic guitar microphone adopts condenser microphone core, so that the sound reproduction of the instrument can reach 99%.

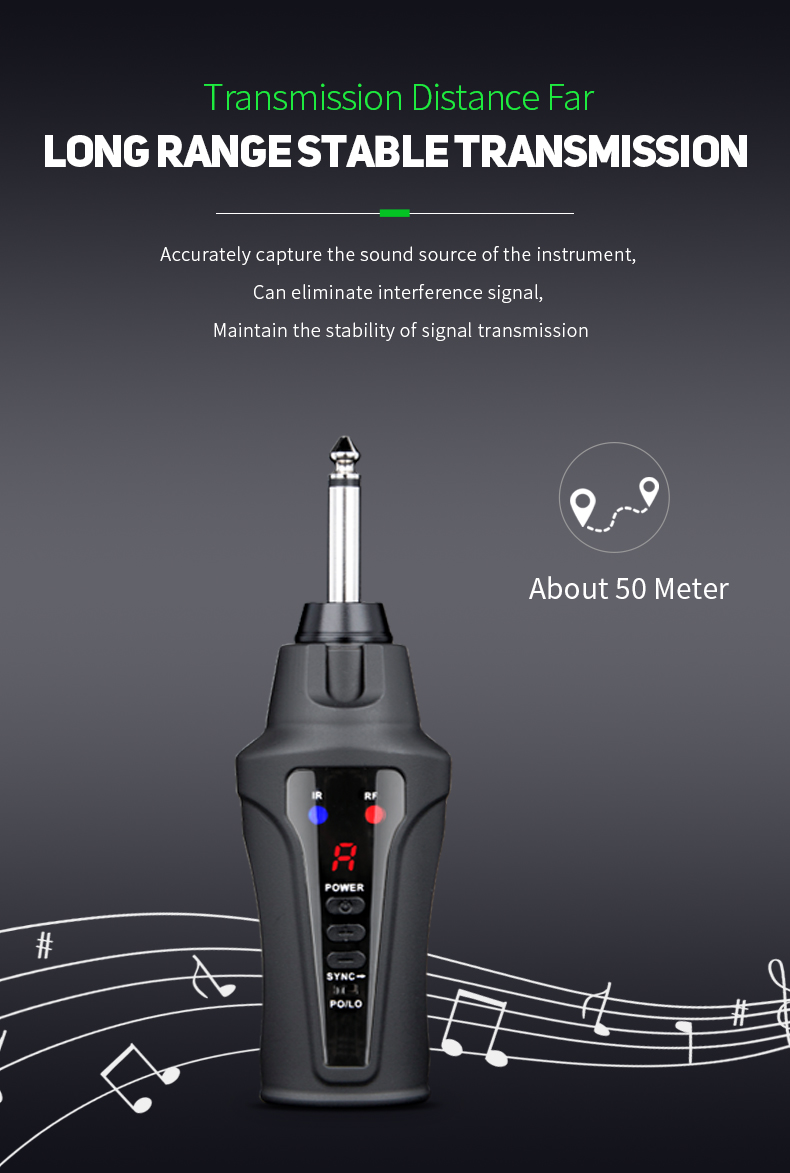

    • Stable Signal Transmission: The acoustic guitar microphone signal transmission distance is 164ft (50m). A total of 16 UHF channels can be selected, and 4 sets of microphone systems can be used at the same time without signal interference.

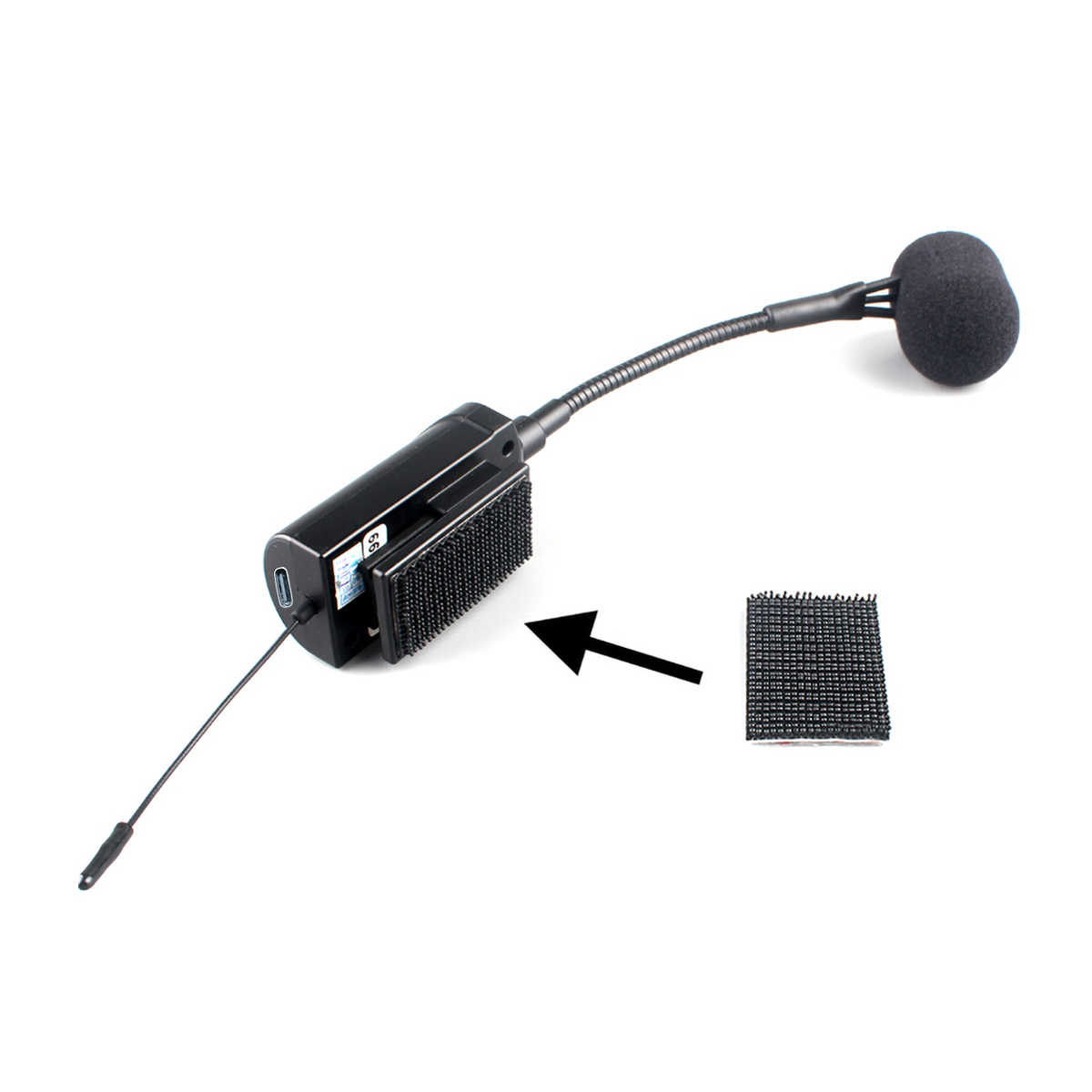

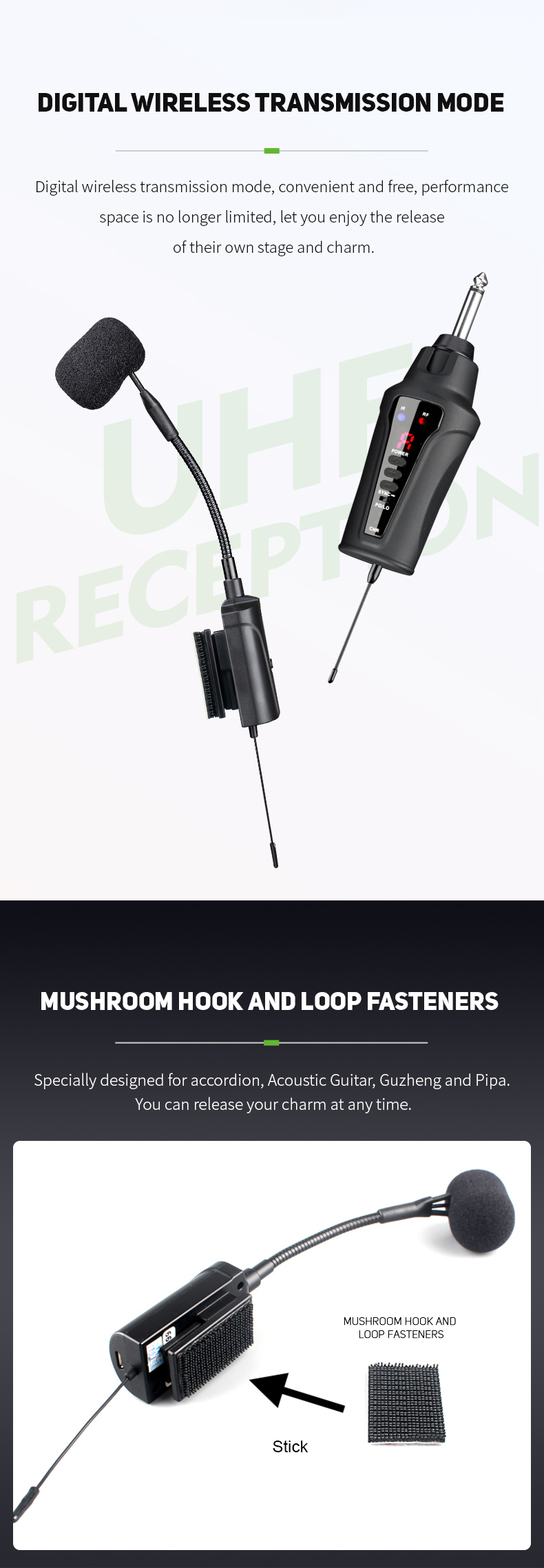

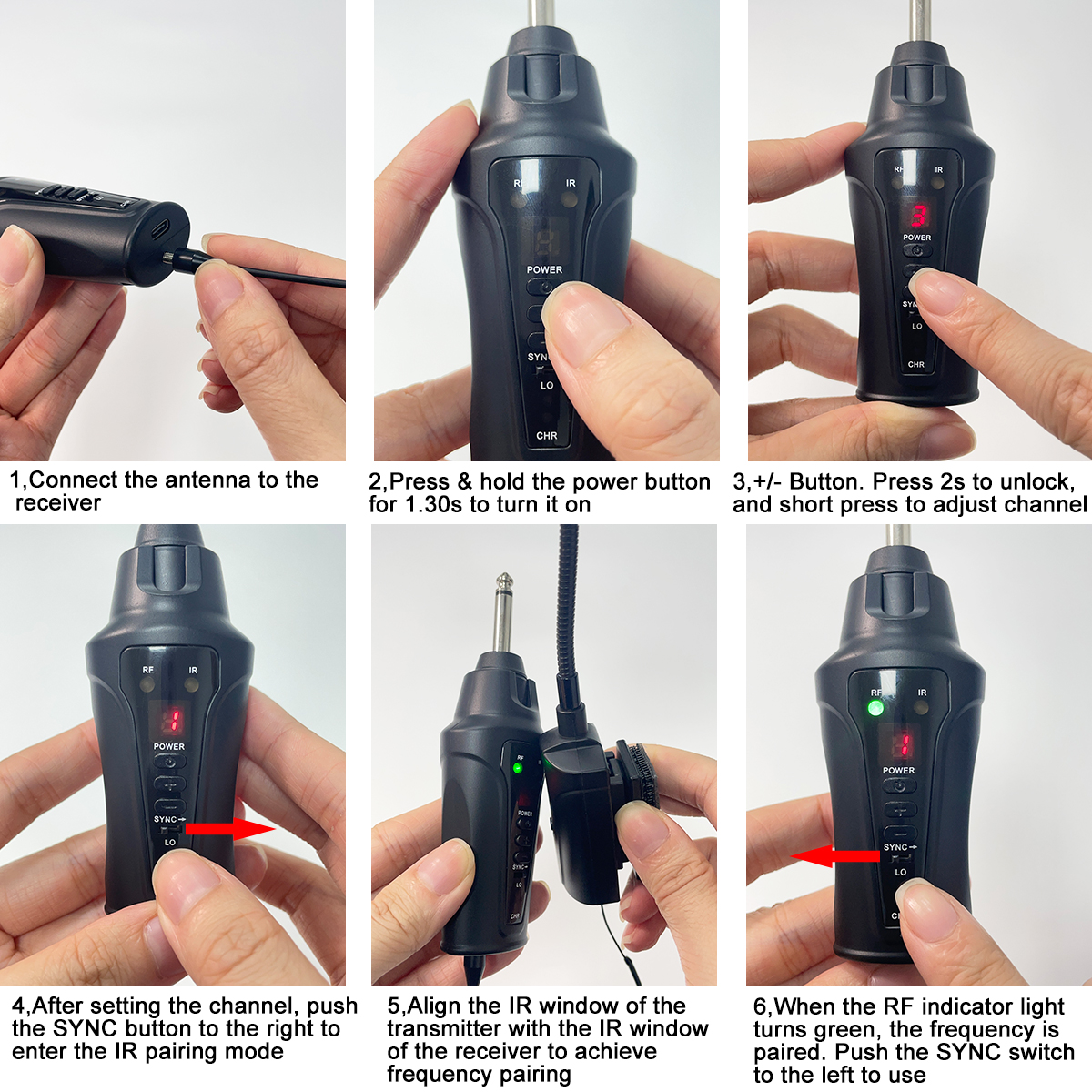

    • Easy to Use: The wireless acoustic guitar microphone attach a Dual Lock on the side of the guitar or near the guitar sound hole (choose a location that won't hinder your playing), then stick the transmitter's dual lock to it. Plug the receiver into the MIC interface of the speaker, and then turn it on and use it.

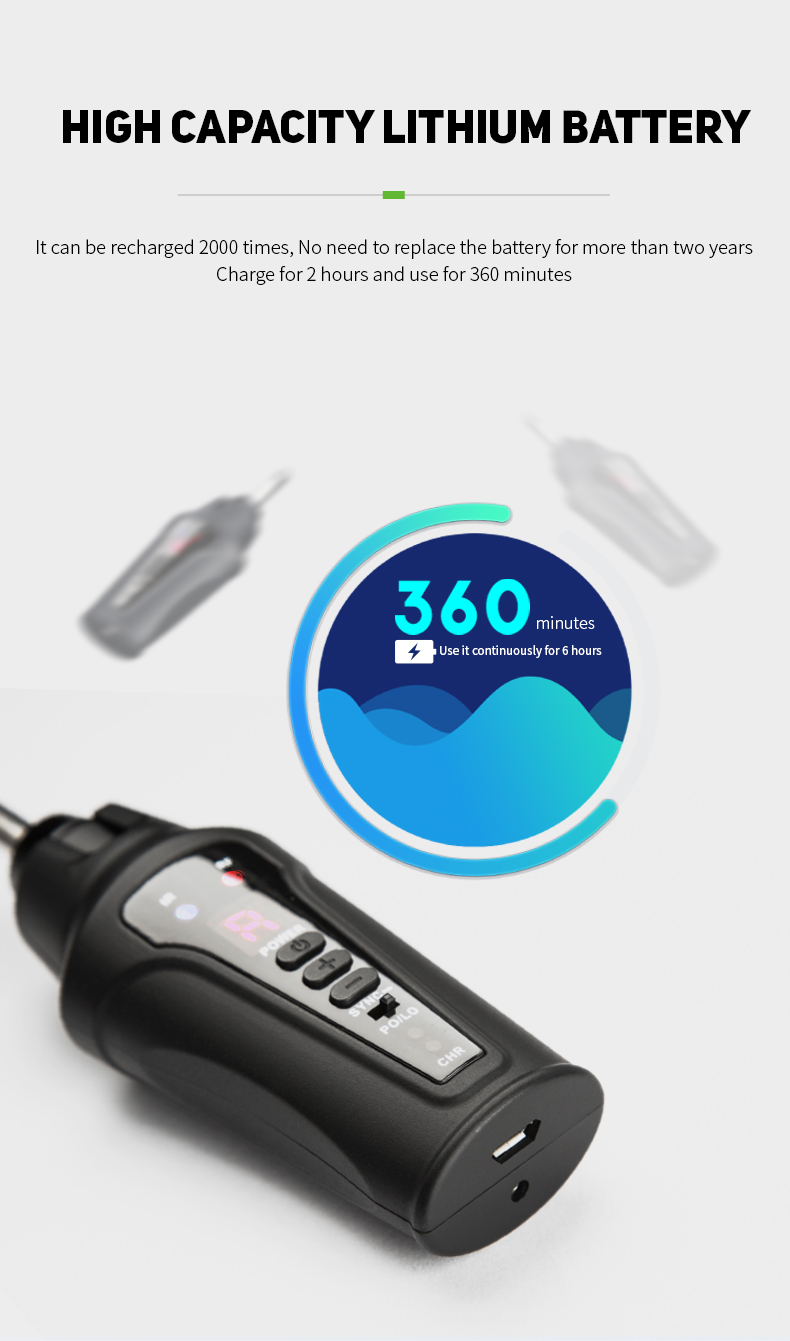

    • High-Capacity Lithium Battery : The acoustic guitar microphone adopts 2-in-1 charging cable to charge the receiver and transmitter at the same time, greatly reducing the charging time.The transmitter and receiver has built-in 750mAh battery, which can be recharged 2000 times, and can be used for 6 hours after 2 hours of charging.

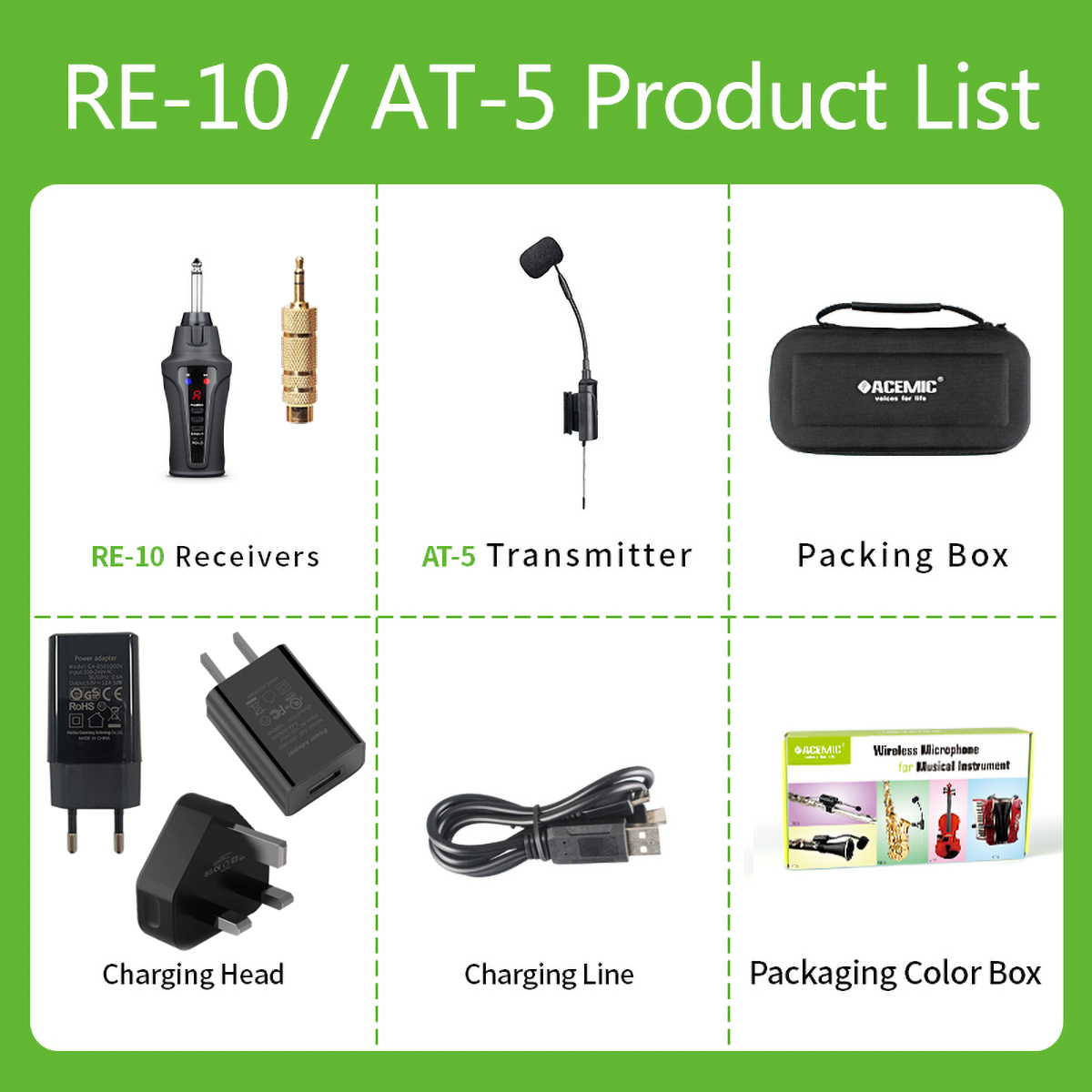

    • Widely Used: This wireless acoustic guitar microphone can be used in solo performance, accompaniment performance, personal entertainment, group performance. 1/4 inch plug (and give a 1/4 inch（6.35mm） to 1/8 inch（3.5mm） conversion plug) can be used to a variety of equipment, loudspeakers, computer audio, PA speakers, mixers, and so on.



  • Customer Reviews
    S***ky

    Good Sound. This guitar microphone sounds awesome, with no static or humming. It is simple to attach and I like the way it mounts securely. The arm is firm enough that it holds the mic is the set position without shifting . It is simple to hook up and use. The complete assembly has a good quality feel to it, a professional feel. Overall I am pleased and I would buy again. 5 STARS

    Jam******phy

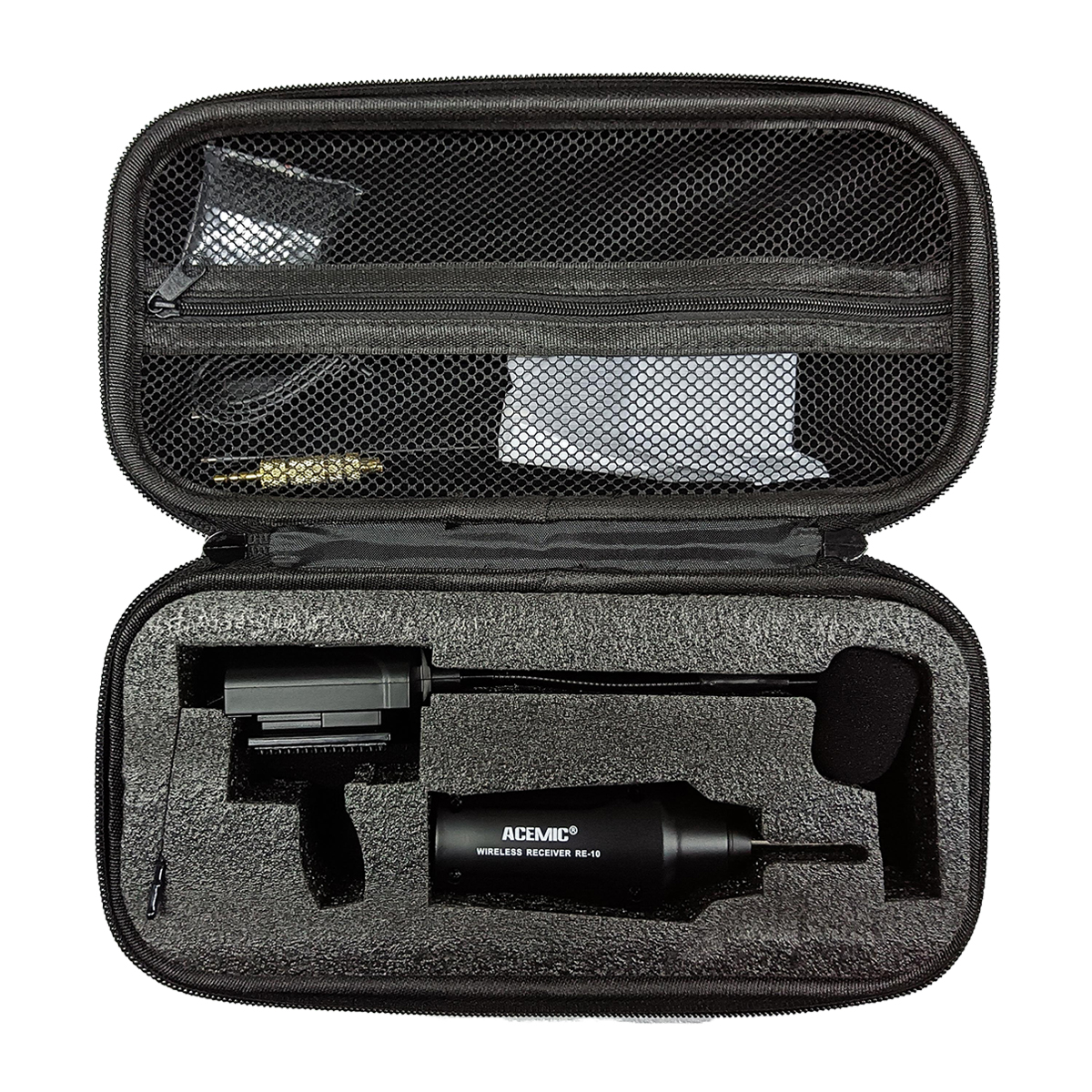

    Simple and functional guitar microphone. My wife has started singing lately and she's pretty good. I got her a vocal microphone set to further her singing efforts but then she also started playing acoustic guitar. She's not exactly Antonio Carlos Jobim but she's capable and getting better. I've also tried accompanying her on guitar a bit. My skills are meager but for her needs I guess I'm OK. Obviously, this newfound musical effort on our part required a guitar microphone so we ordered this one. Assuming you know at least a little about microphones, this is easy to set up and operate. Everything fits into a very nice carrying case so you can take your show on the road. On top of everything, it sounds really good. Even my substandard guitar playing sounds better through this microphone. Highly recommended!
